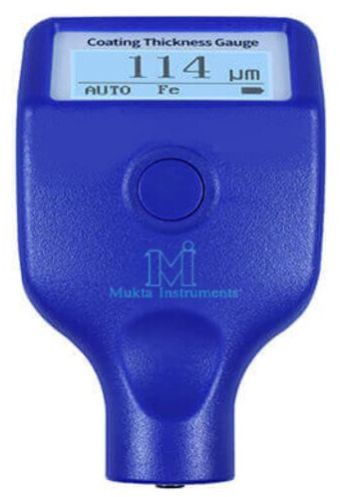

Coating Thickness Gauge MI220H

1. Probe Tip: Ruby fixed
2. Measuring Principle:
-Ferrous: Hall Effect
-Non-ferrous: Eddy Current
3. Probe Type: Integrated probe
4. Measuring Range: 0.0 - 5000μm
5. Resolution:
-0.1μm: 0μm - 99.9μm
-1μm: 100μm - 999μm
-0.01mm: 1.00mm - 5.00mm
6. Accuracy: ≤±(3%H+2μm), H is the standard value
7. Unit: μm / mil
8. Measuring Interval: 0.5s
9. Minimum Measuring Area: Ø = 25mm
10. Minimum Curvature:
-Convex: 5mm
-Concave: 25mm
11. Minimum Substrate Thickness:
-Fe: 0.2mm
-NFe: 0.05mm
12. Display: 128×48 dot matrix LCD
13. Power Supply: 2pcs of 1.5V AAA alkaline battery
14. Operation Temperature Range: 0℃ - 50℃
15. Storage Temperature Range: -20℃ - 60℃
16. Gauge Size: 101 × 62 × 28 mm
17. Weight (with battery): 79g
18. Main Features
• Three-color and rotatable display screen
• Identify iron galvanized body
• Type-C interface charging, ultra-low power consumption
• Switchable between five languages
