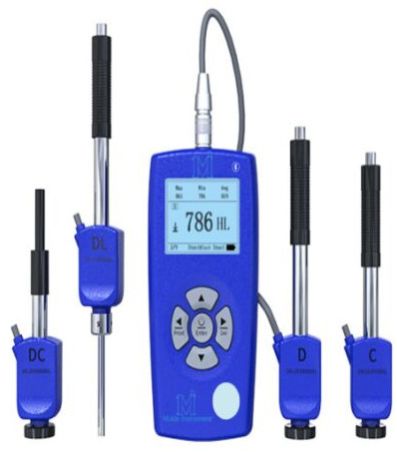

LS253 Leeb Hardness Tester Probe MI253-DC

1. Measuring Range:

• Leeb Hardness (HLD): 170–960

• Vickers Hardness (HV): 83–976

• Brinell Hardness (HB): 30–651

• Rockwell Hardness:

-HRC: 17.6–68.5

-HRB: 13.5–100

-HRA: 60–85.8

• Shore Hardness (HS): 26.4–99.5

2. Probe: Impact device D / Impact device DC / Impact device DL / Impact device C

3. Hardness Scales Supported: HL, HV, HB, HS, HRA, HRB, HRC

4. Resolution: 1 HL

5. Accuracy: ±12 HL, ±6 HL (typical)

6. Repeatability: 6 HL (factory standard)

7. Display: 240 × 16 dot matrix LCD

8. Power Supply: Battery Type: 2 × AA alkaline dry batteries

9. Host Size: 142 × 72 × 28 mm

10. Probe Size: 148 × 31 × 25 mm

11. Weight: 247 g

12. Working Temperature Range: -10°C to 50°C, 0–85% RH (no condensation)

13. Storage Temperature Range: -10°C to 60°C, 0–85% RH (no condensation)

14. Main Features: Suitable for testing the hardness of inner holes and narrow parts with short size
