Product Details
Gas Detected
All Gases
Detection Principle
Specified According to Application
Measure Range
Specified According to Application
Resolution
Specified According to Application
Accuracy
≤±2-5%fs (depending On the Specific Sensor)
Explosion-proof Grade
Iecex：ex Db Iic T6 Gb，ex Db Ia Iic T6 Gb ； Atex：ex Db Iic T6 Gb，ex Db Ia Iic T6 Gb
Protection Grade
Ip66/67
Power Dissipation
Toxic Gas<2.5w, Flammable Gas<4w
Communication Mode
4-20ma(3-wires)、rs485 1～5v，hart(optional)
Wireless
Lora, gprs/4g(optional)
Working voltage
12-24VDC
Contact capacity
Standard with 1 Set of Relay Signals, Optional with 2 Sets of Relay Signals
Display
LED display
Working temperature
-40℃～70℃（Catalytic sensor），-20℃～50℃
Working Pressure
86kpa~106kpa
Housing Material
Die Casting Aluminium
Electrical Interface
Standard Internal Screw Thread M20 * 1.5, Optional 1/2npt Internal Thread, G3/4, G1/2, 3/4npt
Size
157.8x128.8x69.6mm
Weight
About 1.0kg

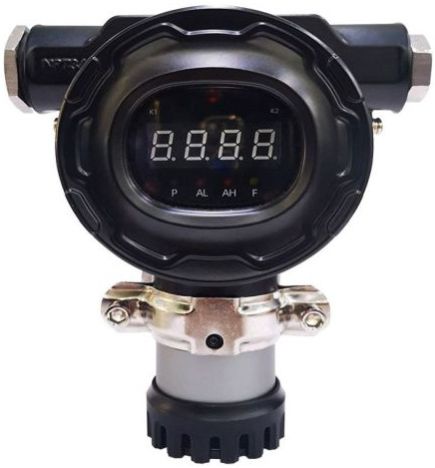

Looking for "MI-100 Fixed Gas Detector" ?
