Pipe Line Inspection Camera

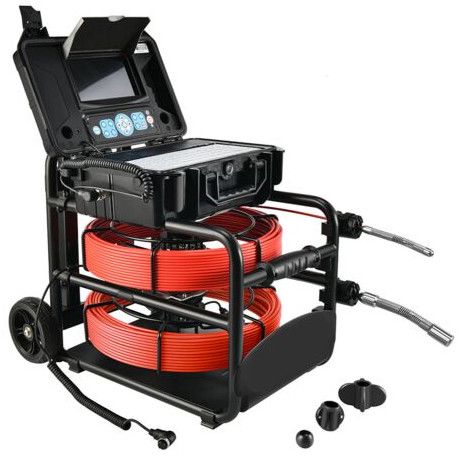

Packing List:



1. Control box with DVR, battery pack, and keyboard



2. Metal frame with cable reel and camera



3. Camera support brackets (Φ25mm, Φ46mm, Φ78mm depending on model)



4. Connection cables and screwdriver



5. User manual



Display: 9-inch DVR monitor with video recording



Capable of passing 90° bends: Φ50mm pipes (21mm camera), Φ32mm pipes (12.8mm cameras)



Material: Waterproof camera head with LED lights, Compact, heavy-duty metal frame and reel

Optional function: 512Hz Transmitter, Self-levelling Camera, 13.3-inch DVR Monitor, Wireless 2.4G 5-inch Monitor

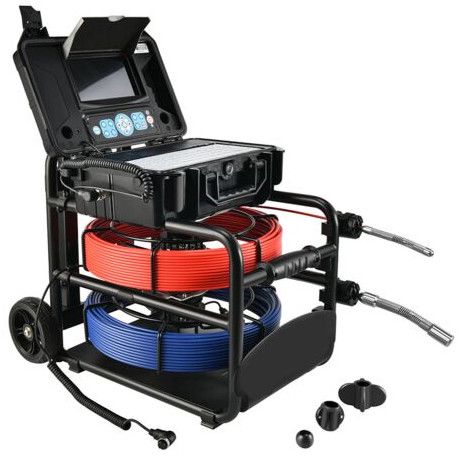

Packing List:





1.


   Control box with DVR, battery pack, and keyboard

2. Camera supports (Φ25mm, Φ46mm, Φ65mm, Φ78mm, Φ105mm depending on model)

3.


   Connection cables and screwdriver

4. Heavy-duty metal frame with integrated cable reel and camera

5. User manual



Display: Standard 9-inch DVR screen with recording and playback functionality

Capable of passing 90° bends: 32mm with 12.8mm cameras, 50mm with 21mm cameras (5.3mm cable), 80mm with 21mm or 29mm cameras (6.8mm cable)



Material: Waterproof camera heads with LED lighting, Sturdy metal frame with built-in cable reel



Optional function: 512Hz Sonde Transmitter, Self-Levelling Camera, 13.3-inch DVR, Wireless 2.4G 5-inch Monitor

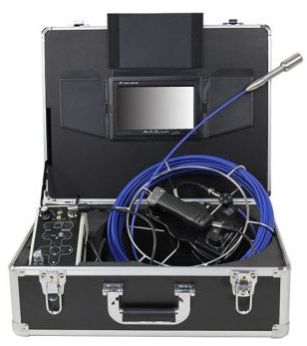

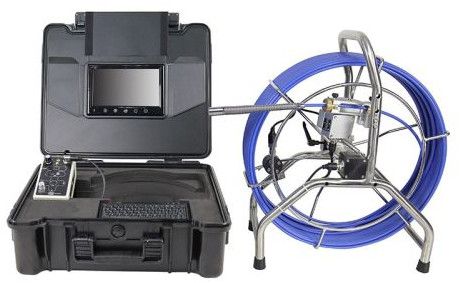

Introducing the MI-A 50mm Pipe Inspection Camera by Mukta Instruments. This high-quality camera in sleek black color is made in India. With a 23mm diameter and optional standard camera head, it features a 7-inch display for clear viewing. Capture videos and images with ease, storing them on SD cards for convenient access and sharing.





Optional Function: 512hz Sonde, 33KHz transmitter, Self Leveling, self-leveling camera head with 512hz sonde



Guide rings: 8-901 and 8-923 for 23mm head



Ball guides: For 14mm and 18mm camera heads



Storage: 16GB SD card + USB SD card reader



Battery: Rechargeable battery



Operating Time: Up to 6 hours





Camera Material: Stainless steel, IP68 waterproof



Lens Cover: sapphire glass

Lighting: 4 high-intensity white LEDs, 9 high-intensity white LEDs, 15 high-intensity white LEDs



Ball Guide: Ø28, Ø46 mm, Ø80 mm

Functions: Image rotation, One-push video/photo recording, On-screen date and time, LED brightness control



Audio: Built-in microphone for local recording



Video Output: Video-Out port for TV connection



Battery: Rechargeable



Operating Time: Up to 7 hours



Pipe Navigation: Capable of passing 90° bends in Ø33mm, Ø45mm pipes



Optional Function: standard, 512hz Sonde, 33KHz transmitter, Self Leveling, self-leveling camera head with 512hz sonde



Storage: 16GB SD card + USB SD card reader



Measurement: On-screen meter counter standard

Introducing the Mukta Instruments 60mm Pipe Inspection Camera from India. This high-quality camera features a 23mm camera diameter, 10.1\" HD display, and 30 meters cable reel. With a resolution of 1920×1080 and optional self-levelling function, it ensures precise and efficient inspections. The blue color adds a touch of style to its functionality.

Introducing the Mukta Instruments 23mm Pipe Inspection Camera from India. This sleek black camera boasts a high-resolution of 1280 × 720 pixels for crystal-clear images. Featuring a self-levelling camera, a 10.1-inch HD display, and a 30m cable length, this tool is perfect for professional inspections.

Illumination: 9 high light white LEDs, 15 high-brightness white LEDs



Guides Included: Ø46 mm and Ø80 mm plastic guides



Display: 7”, 10’’ LCD color screen



Functions: Image rotation, brightness control



Recording: One-push video & photo capture



Storage: 16GB SD card + USB SD card reader



Optional Function: 512hz Sonde, Self Leveling, 512Hz Sonde and Self-leveling



Audio: Built-in microphone for local recording



Text Input: English keyboard for on-screen text



Overlay: On-screen date and time



Battery Type: Rechargeable

Operating Time: Up to 6 hours continuous use



System Protection: Fully waterproof when case is closed



Push Rod: 20m, 30m, 40m fiberglass, φ4.8mm, φ5.2mm, Ø6.8 mm



Navigation: Handles 90° bends in Ø50mm, Ø32mm pipes,



Distance Counter: On-screen cable measurement



Brake System: Smart braking for rod control
