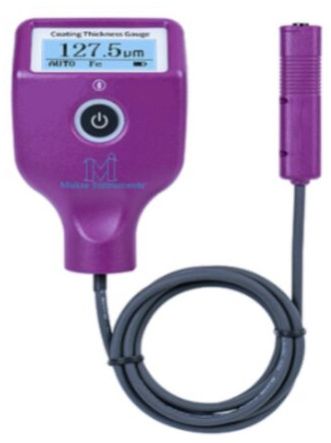

Automotive Paint Meter MI238

1. Probe Tip: Ruby
2. Measurement Principle:
-Fe: Hall effect
-Al: Eddy current
3. Probe Type: External cable probe
4. Measuring Range: 0.0–5000 μm
5. Resolution: 0.1 μm / 1 μm / 10 μm
6. Accuracy:
• 0–3000 μm: ≤±(3%H + 2 μm), where H is the standard value
• 3000–5000 μm: ≤±(5%H + 2 μm), where H is the standard value
7. Unit Options: μm / mil
8. Measuring Interval: 0.3 s
9. Minimum Measuring Area: Ø = 15 mm
10. Minimum Radius of Curvature:
-Convex: 5 mm
-Concave: 25 mm
11. Display: 128 × 48 dot matrix LCD
12. Power Supply: Rechargeable lithium battery (3.7V @ 1200mAh)
13. Operating Temperature Range: -20°C to 50°C
14. Storage Temperature Range: -20°C to 60°C
15. Host Size: 101 × 62 × 28 mm
16. Probe Size: 64 × 15 × 11 mm
17. Weight (including battery): 76 g
18. Data Transfer: Bluetooth
19. Minimum Substrate Thickness:
-Fe: 0.2 mm
-Al: 0.05 mm
20. Main Features:
• Three-color and rotatable display screen
• Rechargeable
• Type-C interface charging with ultra-low power consumption
• Switchable between five languages
• Split-type small probe design with continuous measurement
