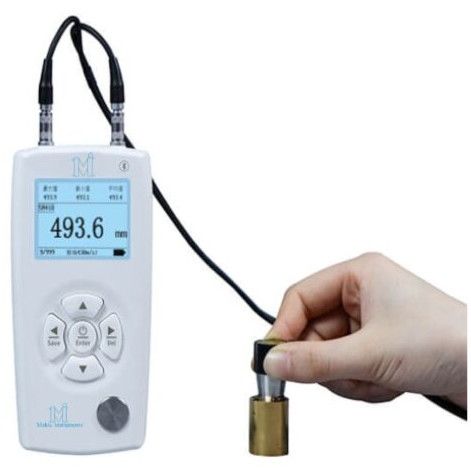

Ultrasonic Thickness Gauge MI211

1. Measuring Range: 0.8–600 mm (for 45# steel)

2. Resolution:

• 0.8–10 mm: 0.001 mm

• 10–100 mm: 0.01 mm

• 100–600 mm: 0.1 mm

3. Accuracy:

• 0.8–10 mm: ±0.05 mm

• 10–600 mm: ±0.5% of reading

4. Sound Velocity Range: 1000–9999 m/s

5. Display: 240 × 160 dot matrix LCD

6. Unit Options: mm / inch

7. Power Supply: 2 × 1.5V AA alkaline batteries

8. Host Size: 142 × 72 × 28 mm

9. Weight: About 230 g

10. Operation Temperature Range: -10°C to 50°C, 0–85% RH (No condensation)

11. Storage Temperature Range: -10°C to 60°C, 0–85% RH (No condensation)

12. Main Features:

• Large measuring range and high resolution

• mm and inch units optional

• 5 MHz dual-element transducer probe

• Automatic gain switchable

• Built-in sound velocity settings for multiple materials
